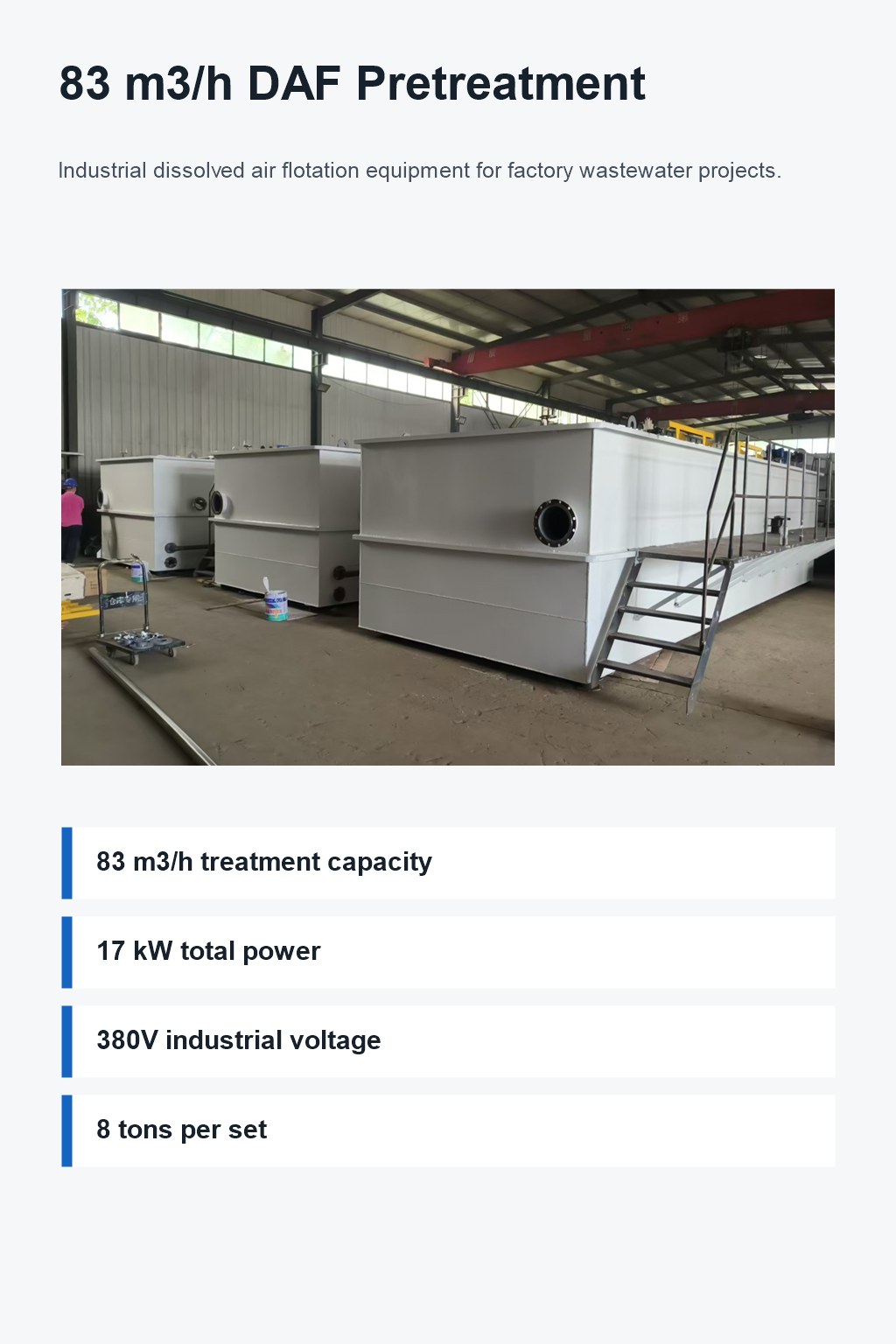

83 m³/h

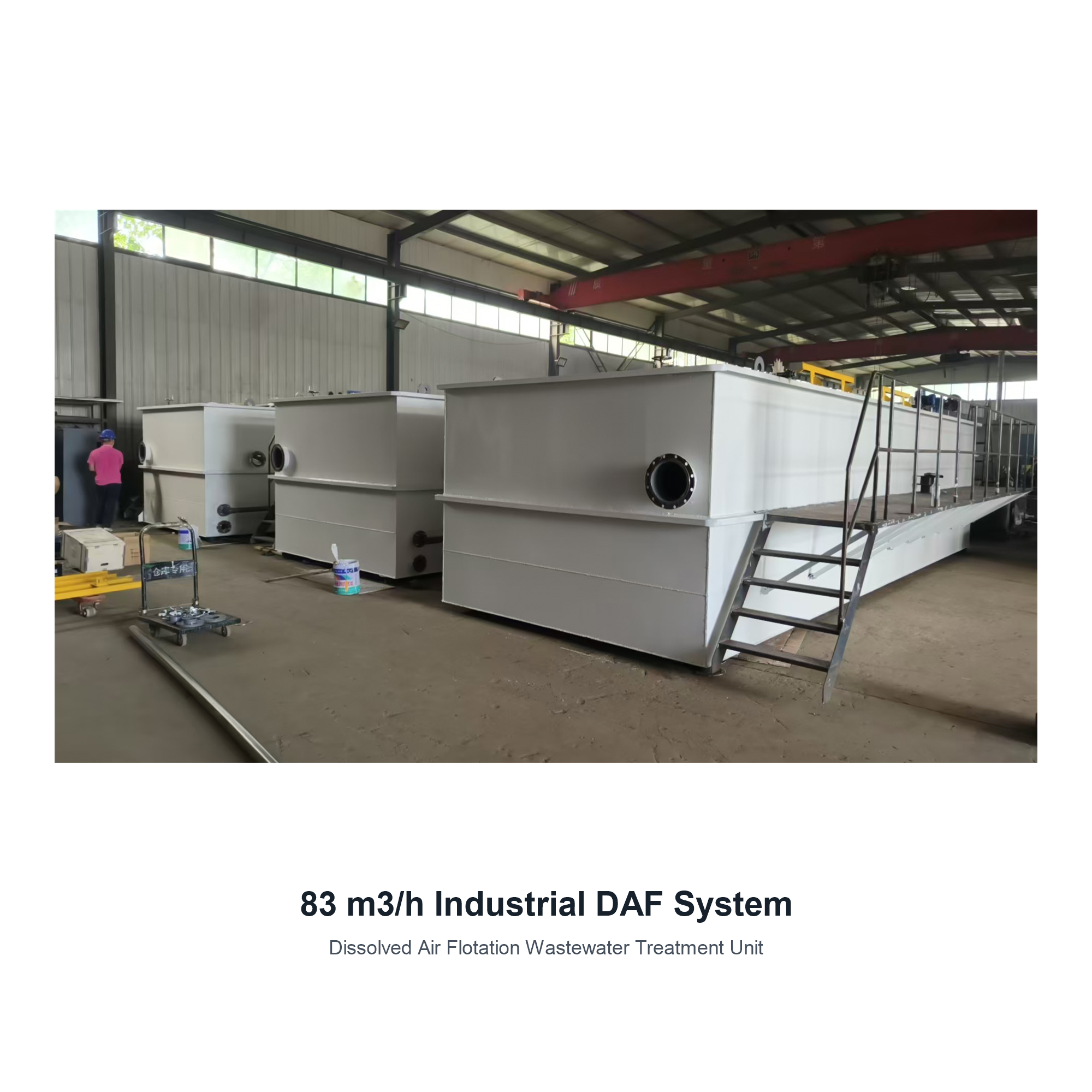

Dissolved Air Flotation (DAF) Machine

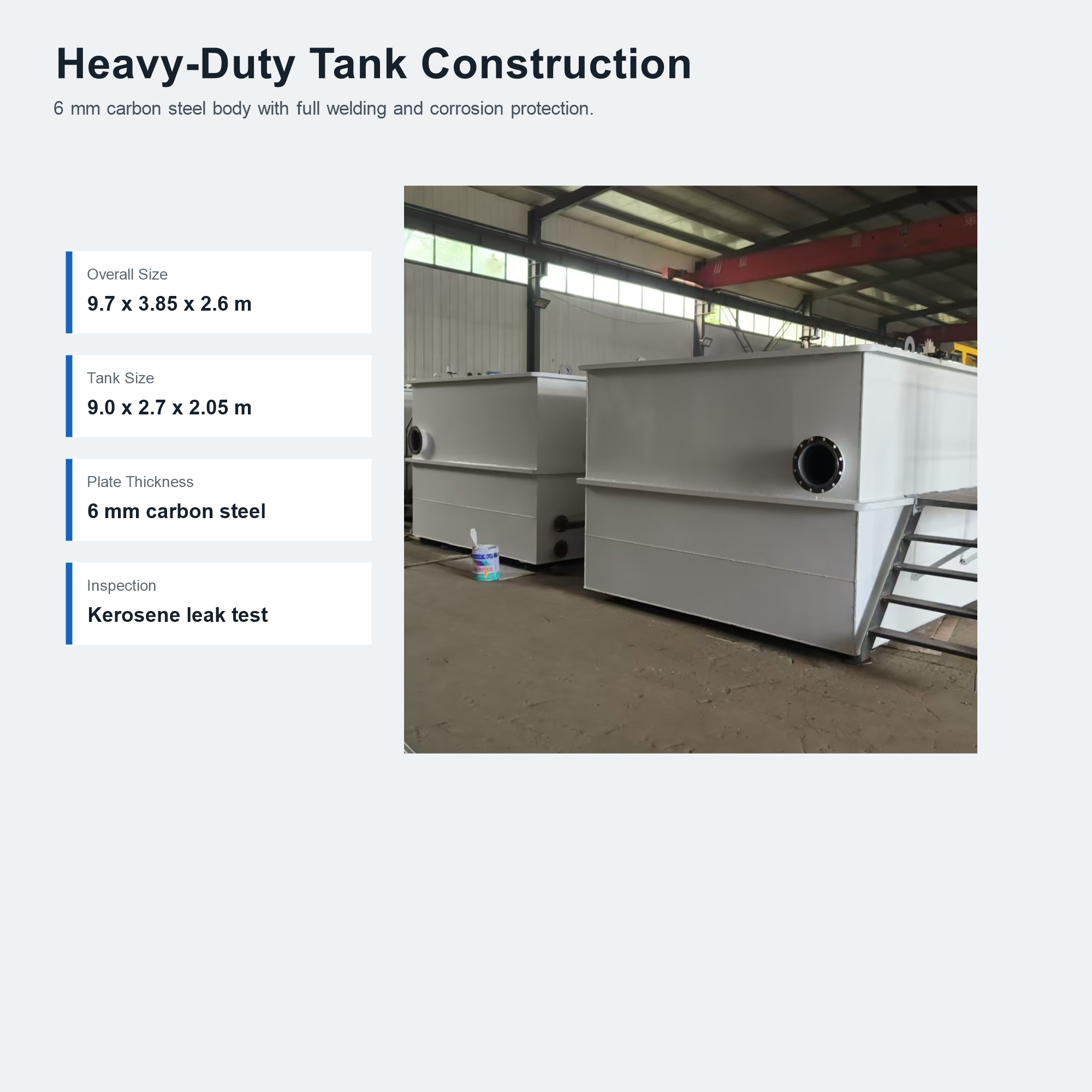

Overall Dimension: 9.7×3.85×2.6 m

Tank Dimension: 9.0×2.7×2.05 m

Plate thickness: 6 mm

Carbon steel with anti-corrosion treatment by Zhongtai Environmental Protection; full penetration welding on both inner and outer sides, kerosene leak test implemented.

Internal coating: epoxy primer + five layers of asphalt paint for corrosion protection;

External coating: primer, intermediate coat and topcoat for rust prevention.
